Pipe Tunnel Frame
Below is a composite drawing of a pipe tunnel frame. Consult Sasco for assistance in designing framing to meet your specific conditions.
Strut Channel S2
1/2" x 1" Hex Head Cap Screw
Clamping Nut S12
Pipe Block S11PC-HG
Insulation Shield

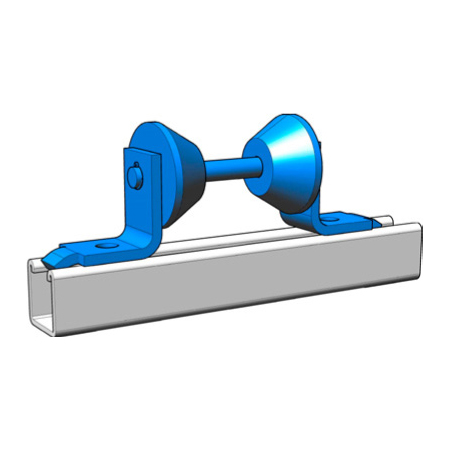

Pipe Rollers S1PR-HG

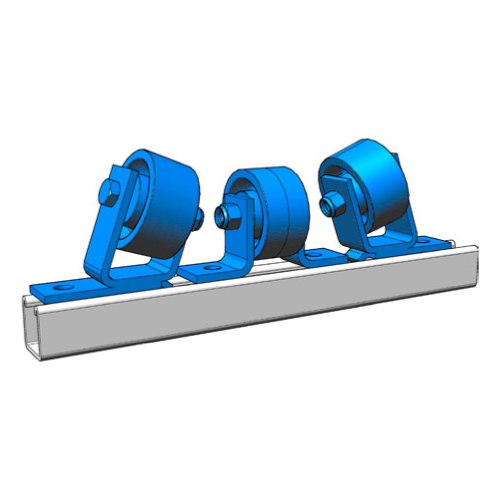

Pipe Rollers S2PR-HG to S5PRG-HG
Three Hole Angle S210A-HG
Concrete Insert Strut Channel S2CI

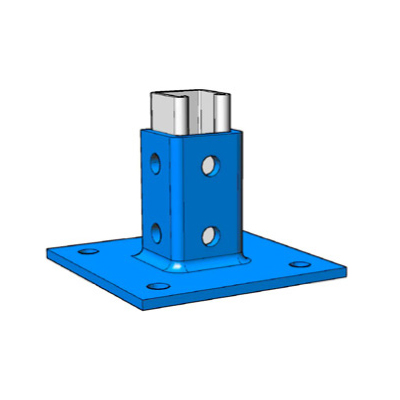

Post Base S501PB-HG
Pipe Rollers S7PR-HG
Two Hole Angle S206A-HG
Strut Channel S2BB
Four Hole Angle S214A-HG
Pipe Clamp
