Slots

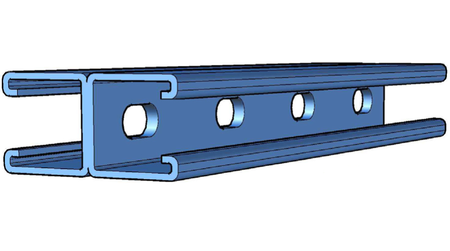

Sasco's Slotted Strut Channels provide adjustment for wall mounting, constructing trapeze supports and other
suspension and mounting applications. Available in most single and back to back steel and stainless steel sizes
and finishes. Slotted aluminum available in single channel only.
This product comes in the following finishes:
Product Suffix:Pre-Galvanized (Standard) G
Hot Dip Galvanized HG
Plain Steel P
Stainless Steel SS
Aluminum AL
FibreglassFG
Standard Finish is defined by the suffix shown while other finishes are also shown. Many of these other finishes are stocked, however some may require custom manufacturing.
|
Catalogue |

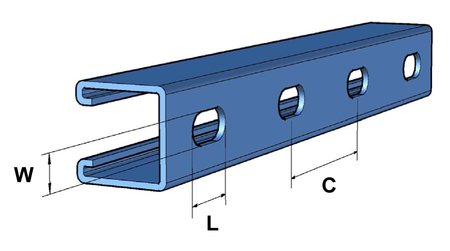

Slot Size | Centres | ||||
| (W) | (L) | (C) | ||||
| (Inches) | (mm) | (Inches) | (mm) | (Inches) | (mm) | |
| SL2 | 9/16 | 14.3 | 1 1/8 | 28.6 | 2 | 50.8 |
| SL4 | 13/32 | 10.3 | 3 | 76.2 | 4 | 101.6 |
| SL6 | 11/16 | 17.5 | 1 1/8 | 28.6 | 4 | 101.6 |
| SL9 | 9/16 | 14.3 | 3 | 76.2 | 4 | 101.6 |
- Standard finish for steel is pre-galvanized (-G). Also available in hot dip galvanized (HG) and in plain steel (P).
- For availability of slots in stainless steel (SS), aluminum (AL) and fibreglass (FG), please consult Sasco.
- Add suffix above, finish and length in inches to Channel Prefix for catalogue number (S2SL2-G120).
